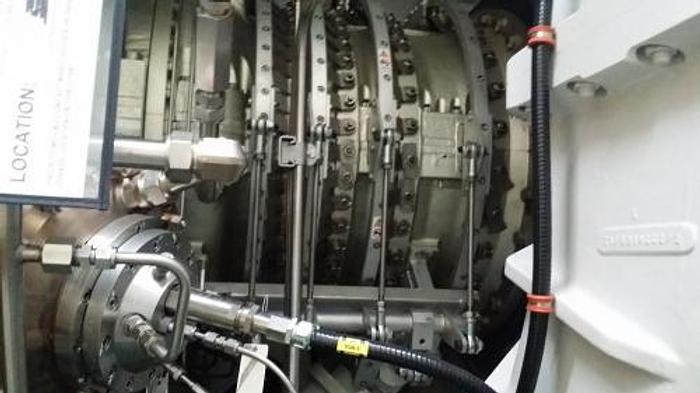

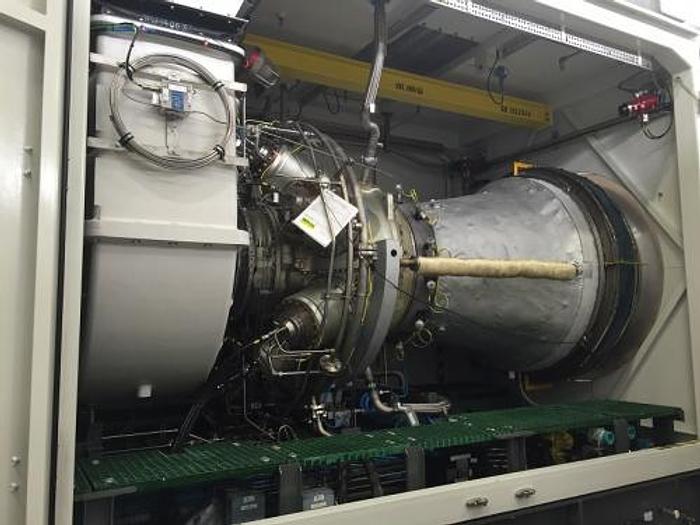

7.9 MW 2015 New Siemens SGT-300 Natural Gas Turbine Generator
Description
EXCLUSIVELY FROM USP&E!
USP&E is selling 7.90 MW 2015 Siemens SGT-300 Natural Gas Turbine Generator NEW! NEVER USED! NEVER INSTALLED!

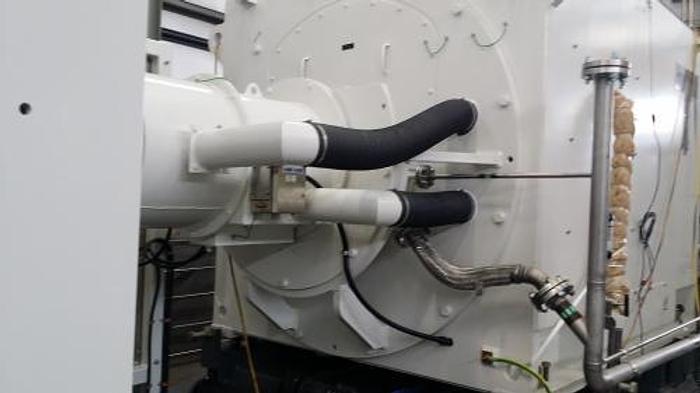

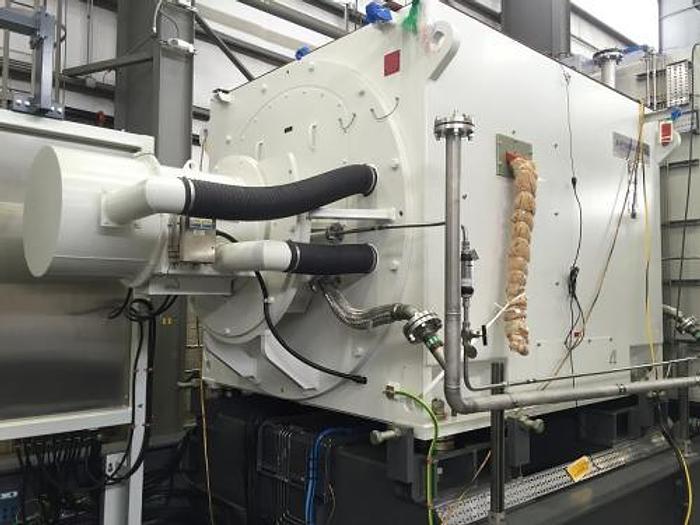

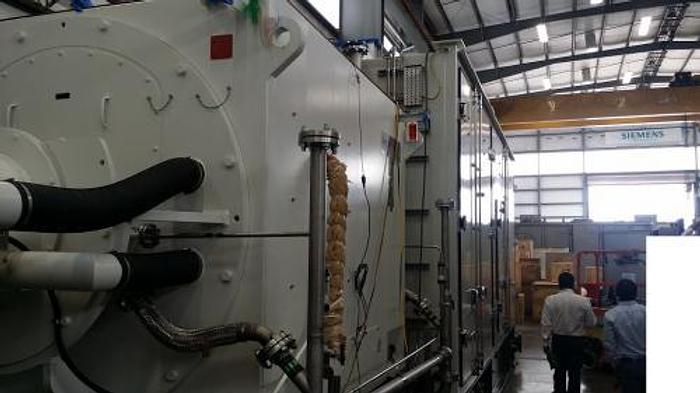

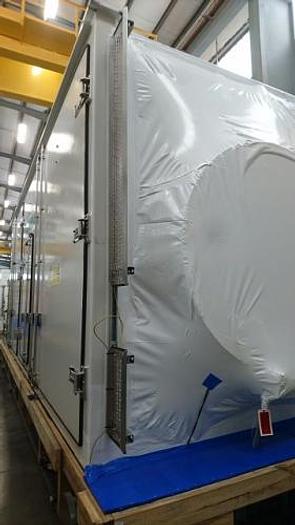

Additional Info: Siemens (GT) Model - SGT-300 Power generation: 7.90 MW(e) (ISO zero loss) Heat Rate: 11,773 kJ/kWh (11,158 Btu/kWh) HYUNDAI (Brushless Generator); 9375kVA, 7500kW, 784 Amps @ 40oC 6.9 kV; 3 ph, 4p, 60Hz, 0.8pf, 1800 RPM Salient pole, Class F Insulation, Class F Temp Rise WPII Generator cooling system with cleanable air inlet filter; NEMA4 terminal boxes Certifications: Non-Hazardous, Safe Area Rated, NEMA MG1 Frequency: 60Hz Vibration monitoring system BN3500 Start system Hydraulic motor and pump – AC electric motor driven Includes: Commissioning spares, 2-years spares. Commissioning tools, 1-year consumables *2 Siemens SGT-300 Natural Gas Turbine Generator Sets Available. **Both Generator Sets have been preserved according to the specifications of SIEMENS. Both units have been inspected in 2017 and 2018 by SIEMENS for manufacturer verification.
Specifications
Manufacturer | Siemens |
Model | SGT-300 |
Year | 2016 |
Condition | New |
Stock Number | USP008961 |
Wattage | 7.9 MW |
Hours | New! |
Fuel type | Natural Gas |
Frequency | 60 Hz |

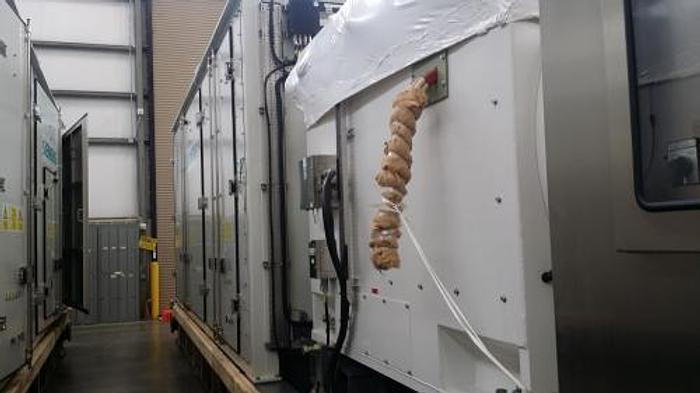

Enclosure | Sound Attenuated Enclosure |
