20.4 MW 2017 New 20V32TS HFO Generator
Description
EXCLUSIVELY FROM USP&E!

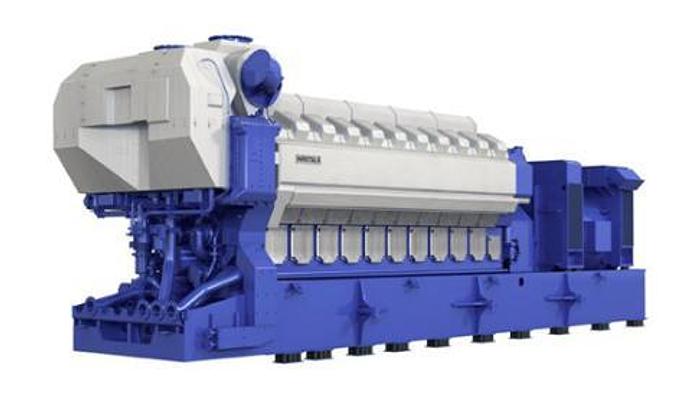

USP&E is Selling a 2x 10MW Wartsila (20 MW total) 2017 20V32TS HFO Power Station - Zero Hour Surplus.
Wartsila W20V32TS (20MW) HFO/Diesel Package Generating Set A1.1 Engine Qty Wartsila 20V32TS Engine:- 2 Common base frame:- 2 Flexible connection:- 2 Generating set assembly:- 2 Set steel springs:- 2 A1.2 Generator Qty Generator – 15000 V:- 2 Flexible coupling:- 2 Flywheel cover:- 2 External enclosure incl. surge capacitors and lightning arrestors:- 2 *Operates on 50Hz Cylinder Configurations:- 20V Cylinder Bore:- 320mm Piston Stroke:- 400mm Speed:- 750rpm (50Hz) Generator Power:- 12688kVA Nominal Voltage:- 15000V Rated Current (In):- 488A Brake Mean Effective Pressure:- 26 bar Mean Piston Speed:- 10m/s (50Hz) Cooling Method:- Air Cooled Enclosure:- IP23 Year of Manufacture:- 2017
**Generator packages are available from a cancelled project.
Installation and EPC and O&M services available - worldwide - through USP&E. Call or email us today at info@uspeglobal.com
Specifications
| Manufacturer | Wartsila |
| Model | 20V32TS |
| Year | 2017 |
| Condition | New |
| Stock Number | USP009190 |
| Wattage | 20 MW |
| Hours | New! |
| Fuel type | HFO |
